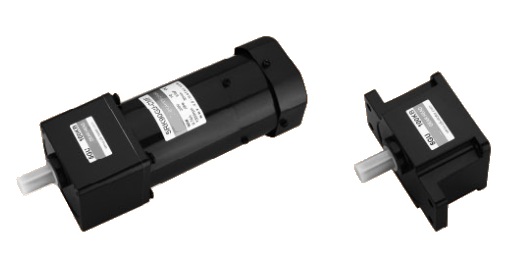

HYST offers high quality ac brake gear motors! Powered from 6W to 120W, comprehensive gear ratio provided! Torque from min. 0.12N.m to max. 20N.m, flange size from 60mm to 90mm. HYST ac brake gear motor run at very low noise and has longer serving life because of its high quality bearings!

1. Structure and Operation Principle

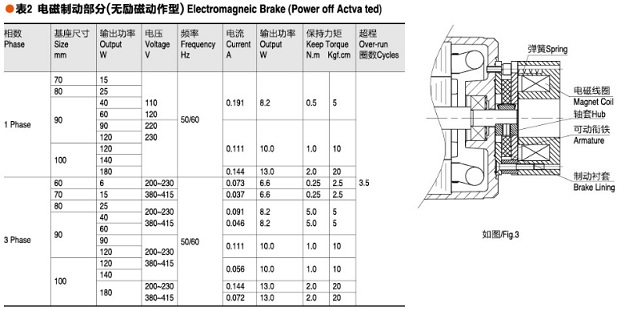

Fig.3 is the structure for the electromagnetic brake motor. We produce the power off actived type. Exerting the voltage on the winding,it will magnetize the armature pressed by the srping. The motor will be in a stage of rotating, when there is a backlash between the armature and brake rim. Once the winding voltage is cut down, under the influence of srping, the armature press the brake rim, which will create a brake force. Then the motor gets to a stop.

2. The Characteristics of the Electromagnetic Brake
It is an AC power off actived type electromagnetic brake which is connected directly with the motor. It will get to a blink stop and keep load when the supply is power off. It will keep the torque between 0.05-2.0N.m. It is especially suitable for the safety brake in the circumstance of unconsciously power off. The electromagnetic can change its direction frequently. It can be stopped 6 time in a minute. But be sure that it lasts for 3 seconds or more.
After we set a commutating loop in the brake, it can share the power supply with the motor.
The value is standard.It will be change in different condition. When actually used,be sure to make the surface temperature of the motor less than 90deg.

3. The Features for the Starting Time and Brake Time
The starting time means the time for the motor's starting time plus the electromagnetic brake release time. The brake time means the time from power cut off to the time of motor completely stop. The over-run, starting time and brake time will be different according to the different applications.
